PG20, PG30, PG40, PG45, PG60
PG20 Aluminium Profile

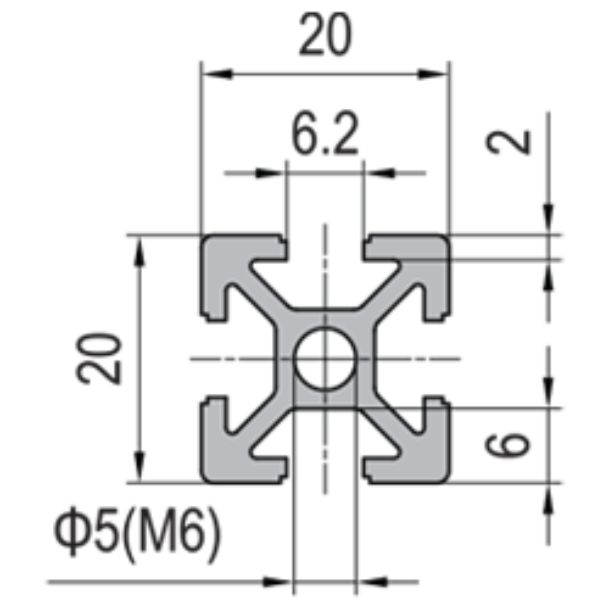

PG20 20x20 4Slots
Discription
| Moment of inertia lx(cm4) | 0.8 |
| Moment of inertia lx(cm4) | 0.8 |
| Moment of Resistance Wx(cm3) | 0.8 |
| Moment of Resistance Wx(cm3) | 0.8 |
| Mass (kg/m) | 0.5 |
| Part No | 1.11.20.020020.40 |

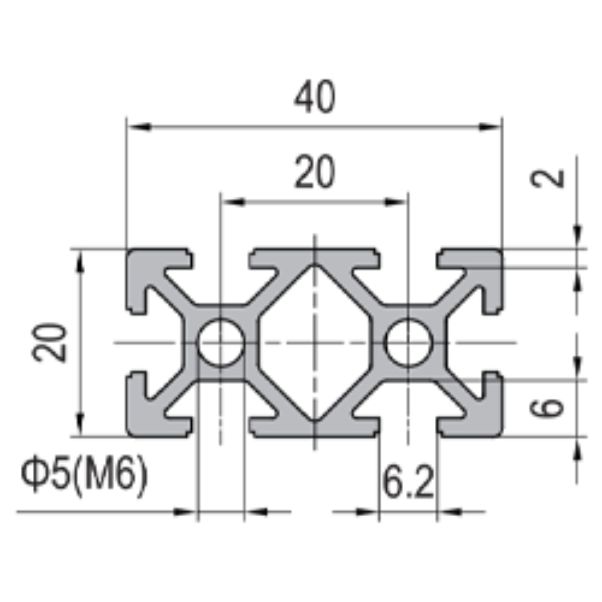

PG20 20x40 6Slots

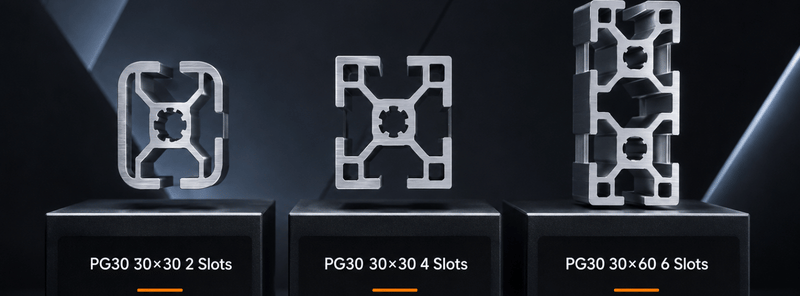

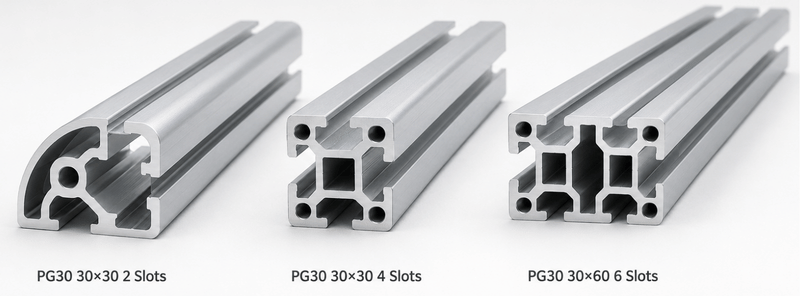

PG30 Aluminium Profile

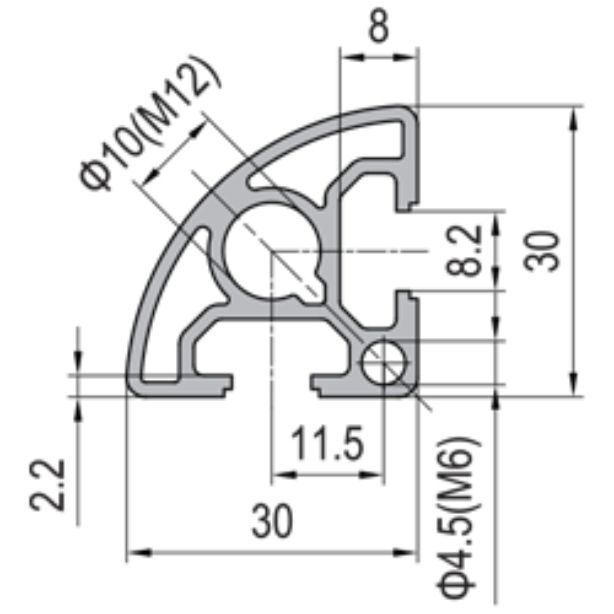

PG30 30x30 2Slots
PG30 30x30 4Slots
PG30 30x60 6Slots
Discription
| Moment of inertia lx(cm4) | 2.5 | |
| Moment of inertia lx(cm4) | 1.6 | |
| Moment of Resistance Wx(cm3) | 1.2 | |
| Moment of Resistance Wx(cm3) | 0.9 | |
| Mass (kg/m) | 0.8 | |
| Part No | 1.11.30.030030.R90.02 |
Discription
| Moment of inertia lx(cm4) | 2.9 |
| Moment of inertia lx(cm4) | 2.9 |
| Moment of Resistance Wx(cm3) | 2.0 |
| Moment of Resistance Wx(cm3) | 1.9 |
| Mass (kg/m) | 0.9 |
| Part No | 1.11.30.030030.04 |
Discription
| Moment of inertia lx(cm4) | 5.3 |
| Moment of inertia lx(cm4) | 19.9 |
| Moment of Resistance Wx(cm3) | 3.5 |
| Moment of Resistance Wx(cm3) | 6.7 |
| Mass (kg/m) | 1.6 |
| Part No | 1.11.30.030060.06 |
PG40 Aluminium Profile

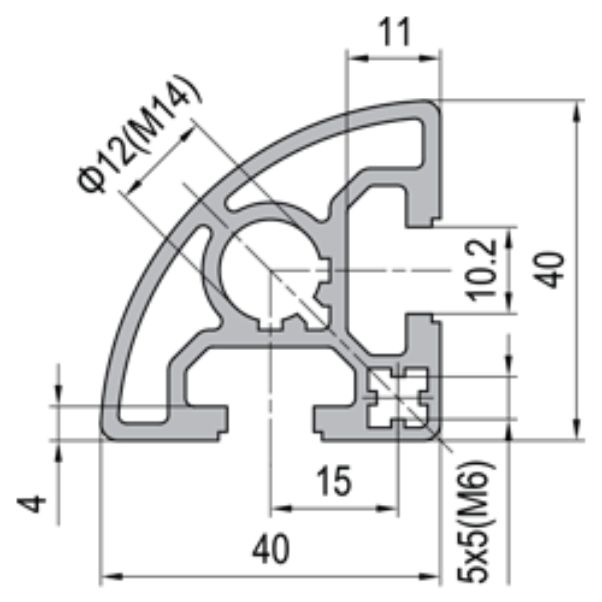

PG40 40x40 R90 2Slots

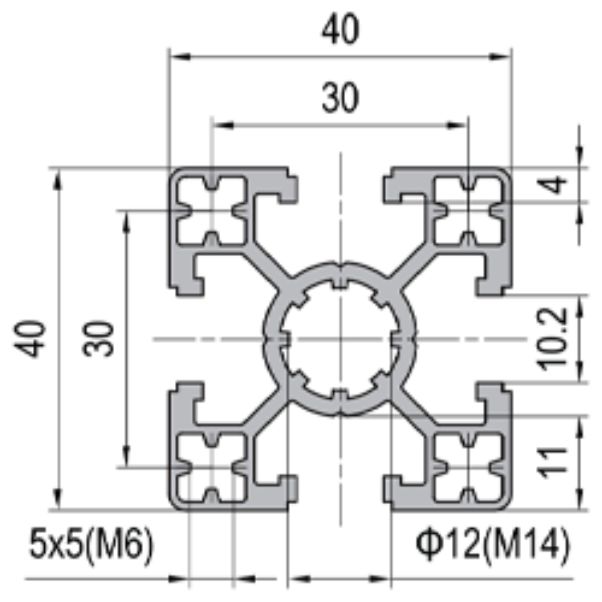

PG40 40x40 3Slots

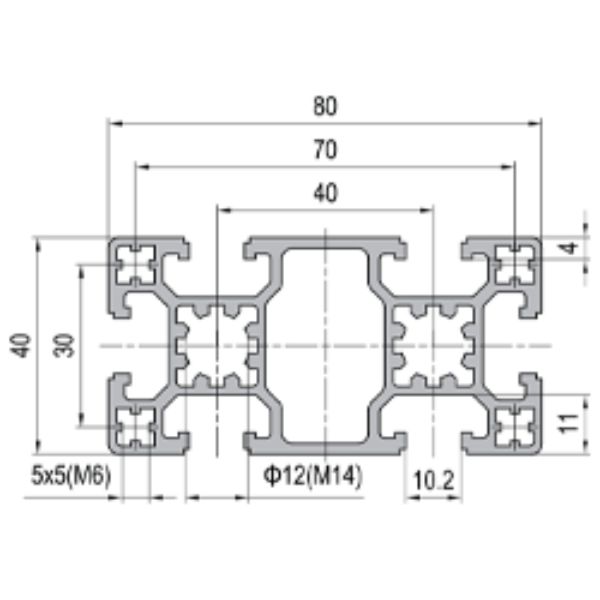

PG30 40x80 6Slots
Discription
| Moment of inertia lx(cm4) | 2.5 | |
| Moment of inertia lx(cm4) | 1.6 | |
| Moment of Resistance Wx(cm3) | 1.2 | |
| Moment of Resistance Wx(cm3) | 0.9 | |
| Mass (kg/m) | 0.8 | |
| Part No | 1.11.30.030030.R90.02 |
PG45 Aluminium Profile
Discription
| Moment of inertia lx(cm4) | 9.1 |
| Moment of inertia lx(cm4) | 8.6 |
| Moment of Resistance Wx(cm3) | 4.5 |
| Moment of Resistance Wx(cm3) | 4.3 |
| Mass (kg/m) | 1.5 |
| Part No | 1.11.40.040040.03 |
Discription
| Moment of inertia lx(cm4) | 14.3 |
| Moment of inertia lx(cm4) | 52.0 |
| Moment of Resistance Wx(cm3) | 7.2 |
| Moment of Resistance Wx(cm3) | 13.0 |
| Mass (kg/m) | 2.3 |
| Part No | 1.11.40.040080.06 |

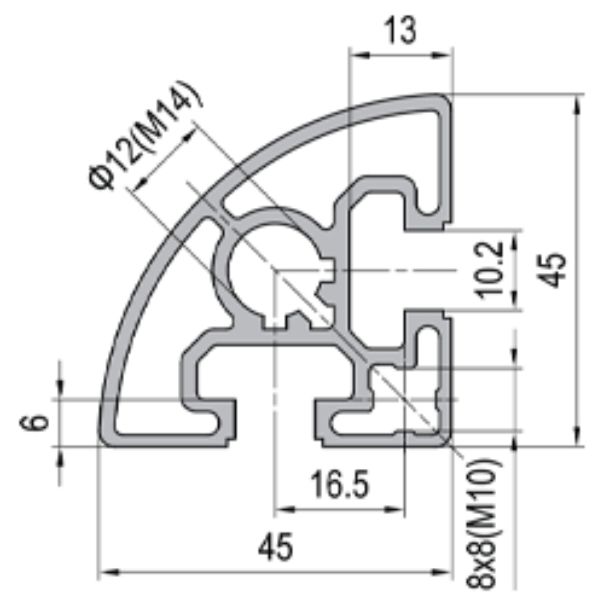

PG45 45x45 R90 2Slots
PG45 45x45 4Slots

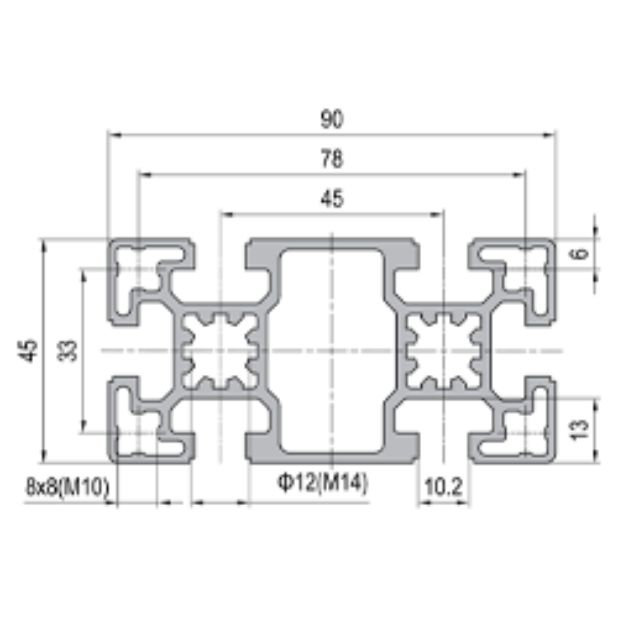

PG45 45x90 6Slots

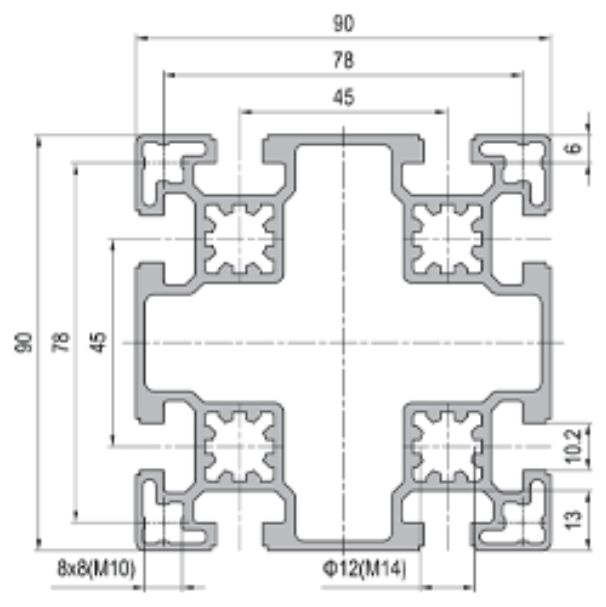

PG45 90x90 8Slots
Discription
| Moment of inertia lx(cm4) | 10.5 | |
| Moment of inertia lx(cm4) | 6.4 | |
| Moment of Resistance Wx(cm3) | 3.5 | |
| Moment of Resistance Wx(cm3) | 2.4 | |
| Mass (kg/m) | 1.5 | |
| Part No | 1.11.45.045045.R90.02 |
PG60 Aluminium Profile
Discription
| Moment of inertia lx(cm4) | 12.1 |
| Moment of inertia lx(cm4) | 12.1 |
| Moment of Resistance Wx(cm3) | 5.4 |
| Moment of Resistance Wx(cm3) | 5.4 |
| Mass (kg/m) | 1.8 |
| Part No | 1.11.45.045045.04 |
Discription
| Moment of inertia lx(cm4) | 24.2 |
| Moment of inertia lx(cm4) | 89.3 |
| Moment of Resistance Wx(cm3) | 10.8 |
| Moment of Resistance Wx(cm3) | 19.9 |
| Mass (kg/m) | 3.2 |
| Part No | 1.11.45.045090.06 |
Discription
| Moment of inertia lx(cm4) | 163.2 |
| Moment of inertia lx(cm4) | 163.2 |
| Moment of Resistance Wx(cm3) | 36.3 |
| Moment of Resistance Wx(cm3) | 36.3 |
| Mass (kg/m) | 5.0 |
| Part No | 1.11.45.090090`.08 |

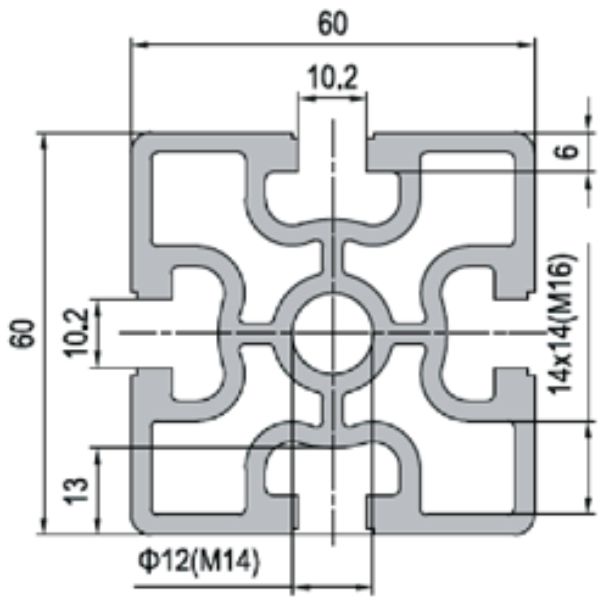

PG60 60x60 4Slots
Discription
| Moment of inertia lx(cm4) | 47.7 |
| Moment of inertia lx(cm4) | 47.7 |
| Moment of Resistance Wx(cm3) | 15.9 |
| Moment of Resistance Wy(cm3) | 15.9 |
| Mass (kg/m) | 3.8 |
| Part No | 1.11.60.060060.04 |
